Description

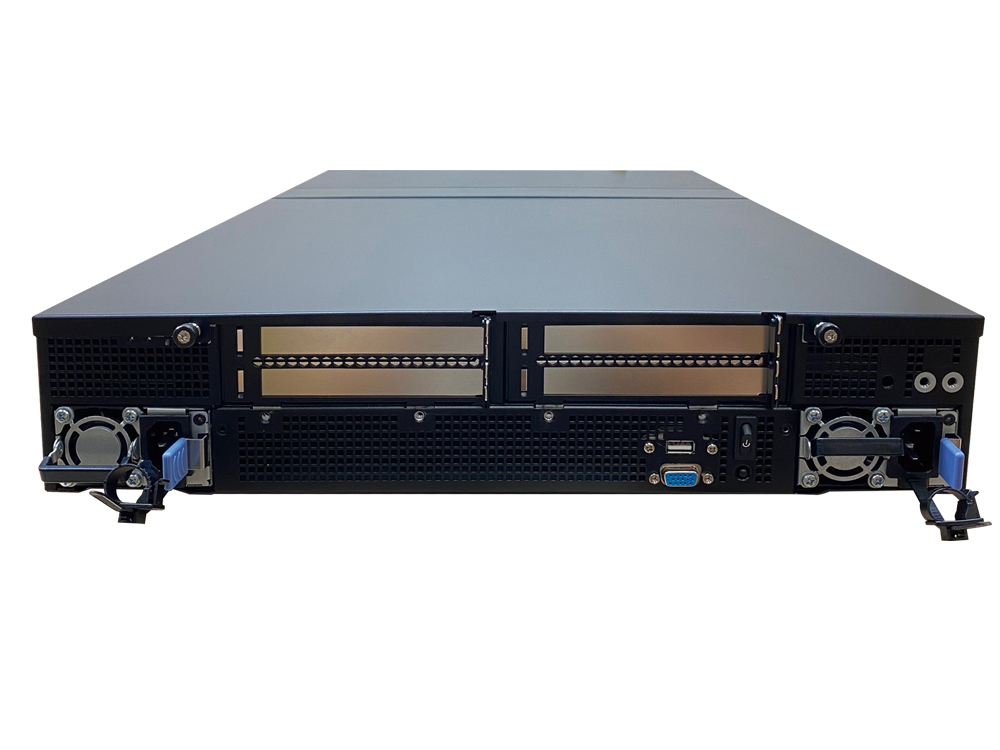

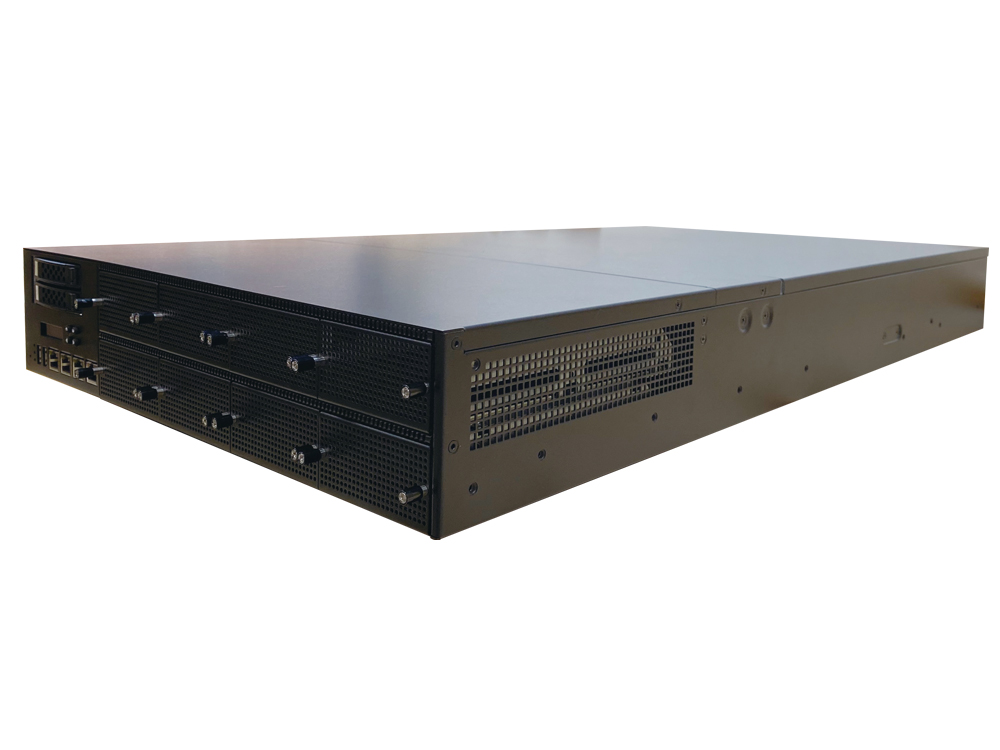

The NCA-6530, a high-performance 2U rackmount network appliance, is powered by the 5th Gen Intel® Xeon® Scalable Processors (Codenamed Emerald Rapids) and supports up to 8x NIC slots, Max. 1536GB system memory, 6x hot-swappable fans, 1600W/2000W redundant PSUs, Intel® QAT and optional PCIE.
Specifications
| Platform | |
| Form Factor | 2U 19” Rackmount |
| Processor Options | 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids) |
| CPU Socket | 2 x LGA4677 |
| Chipset | Intel® C741 |
| Security Acceleration | Intel® QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | DDR5 4800MHz R DIMM |
| Max. Capacity | 1536GB |
| Socket | 24 x 288-pin REG DIMM |
| Networking | |
| Ethernet Ports | 2 x GbE RJ45 Intel® i350-AM2 |
| Bypass | Depending on NIC Module Specifications |
| NIC Module Slot | 8 |
| LOM | |
| IO Interface | 1 x RJ45 |
| OPMA Slot | IPMI Onboard |
| I/O Interface | |
| Reset Button | 1 |
| LED | Power/Status/Storage |
| Power Button | 1 x ATX Power Switch |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| LCD Module | Yes |
| Display | 1 x VGA (Internal Pin Header) |
| Power Input | AC Power Inlet on PSU |
| Storage | |
| HDD/SSD Support | SKU A & C: 2 x 2.5” Swappable |
| Onboard Slots | 2x M.2 NVME 2280; 1x M.2 2280 SATA |
| Expansion | |
| PCIe | SKU A: N/A (Default); 2x PCIE x16 FH/HL Dual Slots (Optional) SKU C: N/A (Default); 2x PCIE x16 FH/FL Dual Slots (Optional) |
| Mini-PCIe | N/A |
| SIM Slot | N/A |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | TPM2.0 (Optional) |
| Cooling | |
| Processor | Passive CPU Heatsink |
| System | 6 x Individual Hot-swappable Cooling Fans With Smart Fan |
| Environmental Parameters | |
| Temperature | 0~40ºC Operating -20~70ºC Non-Operating |
| Humidity (RH) | 5~90% Operating 5~95% Non-Operating |
| System Dimensions | |
| Dimensions (WxDxH) | 438mm x 760mm x 88mm |
| Weight | 21.2kg |
| Package Dimensions | |
| (WxDxH) | 588mm x 926mm x 303mm |
| Weight | 31.2kg |
| Power | |
| Type / Watts | 1600W/2000W 1+1 ATX Redundant PSUs |
| Input | AC 200~240V @50~60 Hz |
| Certification | |
| Approvals and Compliance | RoHS, CE/FCC Class A, UL |
Order Information
| NCA-6530A | 5th Gen Intel® Xeon® Scalable Processors (350W), 2x GbE RJ45 MGMT, AST2600 MGMT With 1600W 1+1 Redunduency PSU, 2x 2.5’’HDD |
| NCA-6530C | 5th Gen Intel® Xeon® Scalable Processors (185W), 2x GbE RJ45 MGMT, AST2600 MGMT With 2000W 1+1 Redunduency PSU, 2x 2.5’’HDD, Optional Support For Up To 300W GPU Double Side At Rear |
Compatible NIC Modules
| Model | Ports | Speed | Chipset | PCEI Gen | PCIe Interface | LAN Bypass |
| NCS2-IGM428A | 4 RJ-45 | 1Gb | Intel i350AM-4 | Gen2 | 1 * PCIex4 | G3 |
| NCS2-IGM806A | 8 RJ-45 | 1Gb | Intel i350AM-4 | Gen2 | 2 * PCIex4 | G3 |
| NCS2-IGM806B | 8 RJ-45 | 1Gb | Intel i350AM-4 | Gen2 | 2 * PCIex4 | N/A |
| NCS2-ISM405A | 4 SFP | 1Gb | Intel i350AM-4 | Gen2 | 1 * PCIex4 | G3 |
| NCS2-ISM406A | 4 SFP | 1Gb | Intel i350AM-4 | Gen2 | 1 * PCIex4 | N/A |
| NCS2-ISM802A | 8 SFP | 1Gb | Intel i350AM-4 | Gen2 | 2 * PCIex4 | N/A |
| NCS2-IMM802A | 4+4 SFP + RJ-45 | 1Gb | Intel i350AM-4 | Gen2 | 2 * PCIex4 | N/A |
| NCS2-IXM407A | 4 SFP+ | 10Gb | Intel XL710-BM1 | Gen3 | 1 * PCIex8 | N/A |
| NCS2-IXM801A | 8 SFP+ | 10Gb | Intel XL710-BM1 | Gen3 | 2 * PCIex4 | N/A |
| NCS2-IXM803A | 8 SFP+ | 10Gb | Intel E810-CAM2 | Gen4 | 1 * PCIex8 | N/A |
| NCS2-IXM409A | 4 SFP+ | 10Gb | Intel XL710-BM1 | Gen3 | 1 * PCIex8 | G3 |
| NCS2-ITM401A | 4 RJ-45 | 10Gb | Intel XL710-BM1 | Gen3 | 1 * PCIex8 | N/A |
| NCS2-IXM206A | 2 SFP+ | 10Gb | Intel X710-BM2 | Gen3 | 1 * PCIex8 | N/A |
| NCS2-IXM415A | 4 SFP28 | 25Gb | Intel E810-CAM1 | Gen4 | 1 * PCIex8 | N/A |
| NCS2-IVM201A | 2 SFP28 | 25Gb | Intel XXV710-AM2 | Gen3 | 1 * PCIex8 | N/A |
| NCS2-IQM201A | 2 QSFP+ | 40Gb | Intel XL710-BM2 | Gen3 | 1 * PCIex8 | N/A |
| NCS2-IHM204A | 2 QSFP28 | 100Gb | Intel E810-CAM2 | Gen4 | 1 * PCIex8 | N/A |
| N2S-MHM201A | 2 QSFP28 | 100Gb | Mellanox connectX IV | Gen3 | 1 * PCIex16 | N/A |
| N2S-IHM203A | 2 QSFP28 | 100Gb | Intel E810-CAM2 | Gen4 | 1 * PCIex16 | N/A |
| N2S-MHM203A | 2 QSFP28 | 100Gb | Mellanox connectX VI | Gen4 | 1 * PCIex16 | N/A |
All product specifications are subject to change without prior notice
