Description
Overview
The ECA-6051 enables low-latency multi-access edge computing applications in private 5G networks, including video transcoding, factory visual inspection, and RAN intelligent control.
Specifications
| Platform | |
| Form Factor | 2U 19” Rackmount |
| Processor Options | NVIDIA Grace Arm Neoverse V2 Or Intel® Xeon®6 Processor |
| CPU Socket | 1x LGA 4710 |
| Chipset | N/A |
| Security Acceleration | Intel® QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | DDR5 6400MHz REG RDIMM |
| Max. Capacity | 1536GB |
| Socket | 8x 288pin DIMM |
| Networking | |
| Ethernet Ports | 1x GbE RJ45 MGMT (i210) |
| LOM | |
| IO Interface | 1 x RJ45 |
| OPMA Slot | IPMI Onboard |
| I/O Interface | |
| Reset Button | Yes |
| LED | Power/Status/Storage |
| Power Button | 1 x ATX Power Switch |
| Console | 1 x RJ45 |
| USB | 1 x USB 3.0 |
| LCD Module | Yes |
| Display | MiniDP (VGA Signal) |
| Storage | |
| HDD/SSD Support | 2x E1.S SSD |
| Onboard Slots | 2x M.2 NVMe (PCIe Gen5*4 ) 22110 |
| Expansion | |
| PCIe | SKU A: 2x PCIe*16 FH 3/4L (Double Width) 1x PCIe*16 FHHL SKU B: 1x PCIe*16 FH3/4L (Double Width) 1x PCIe*16 LP |
| OCP3.0 | N/A |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Yes, IAC-TPM04A Module |
| Cooling | |
| Processor | Passive CPU Heatsink |

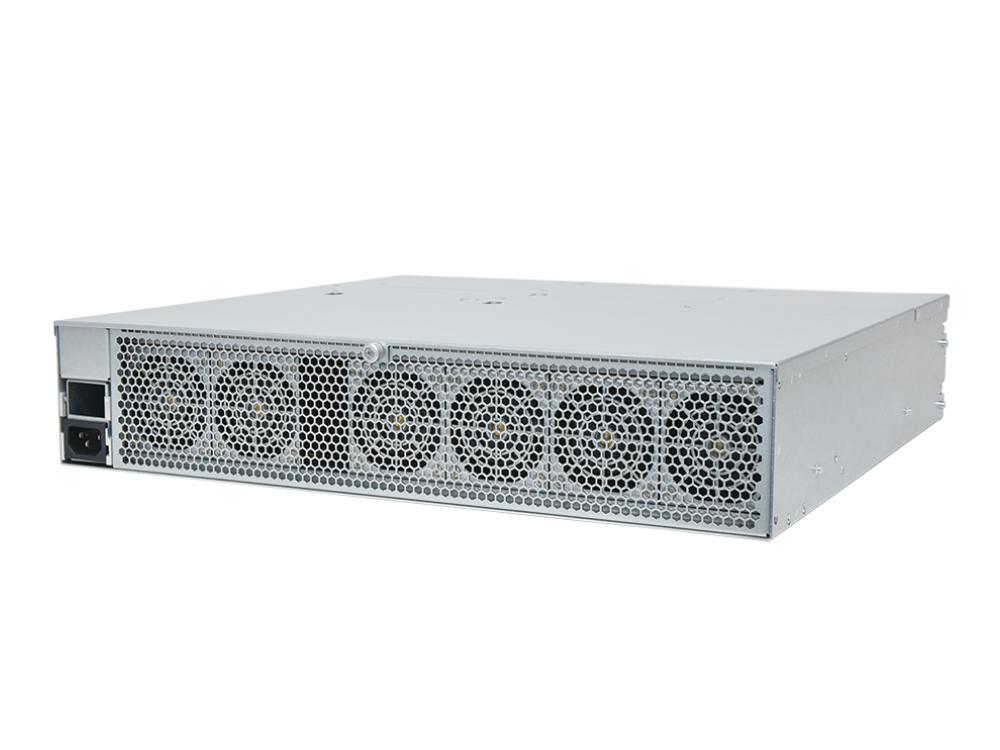

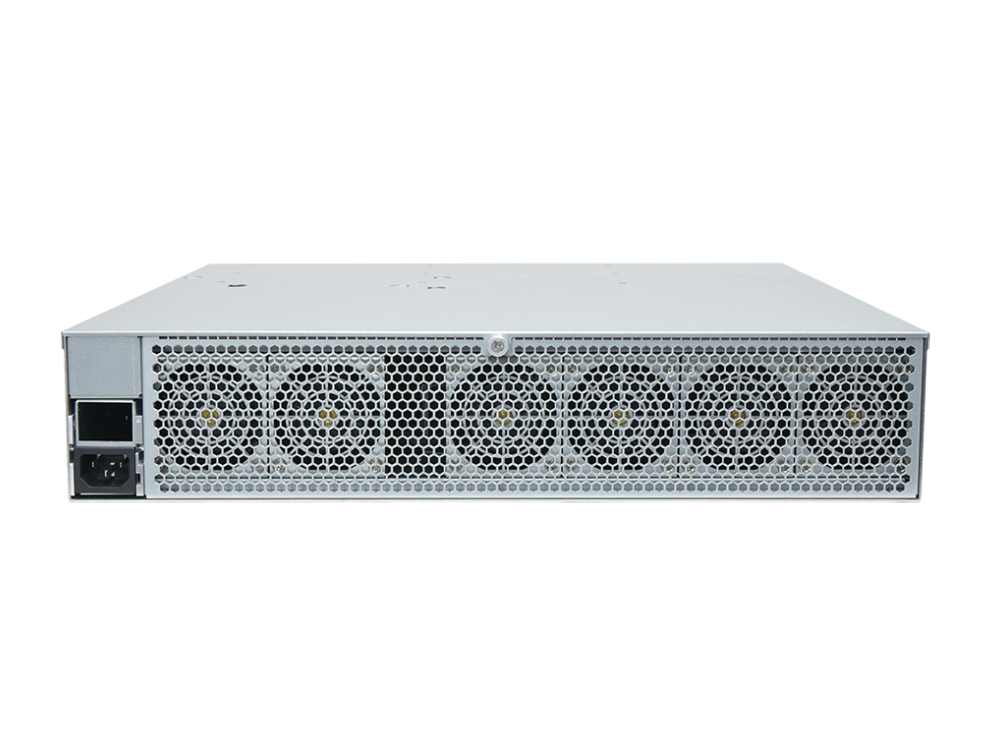

| System | 6x Smart Fans |
| Environmental Parameters | |
| Temperature | 0~40ºC Operating -40~70ºC Non-Operating |
| Humidity (RH) | 5~95% Operating 5~95% Non-Operating |
| System Dimensions | |
| Dimensions (WxDxH) | 438 x 420 x 88 mm |
| Weight | TBD |
| Package Dimensions | |
| (WxDxH) | TBD |
| Weight | TBD |
| Power | |
| Type / Watts | 1600W AC CRPS PSU |
| Input | AC 90~264V @47~63Hz |
| Certification | |
| Approvals and Compliance | RoHS, CE/FCC Class A, UL, NEBS (Level 3) |
Order Information
| ECA-6051A | Intel Sierra Forest SP, 3x PCIe Card Extension Support (2x FH3/4L, 350W, 1x FHHL Double Width), 2x E1.S, 1600W AC PSU |
| ECA-6051B | Intel Sierra Forest SP, 2x PCIe Card Extension Support (1x FH3/4L, 350W, 1x LP), 2x E1.S, 1600W AC PSU |
All product specifications are subject to change without prior notice
