Description
Overview

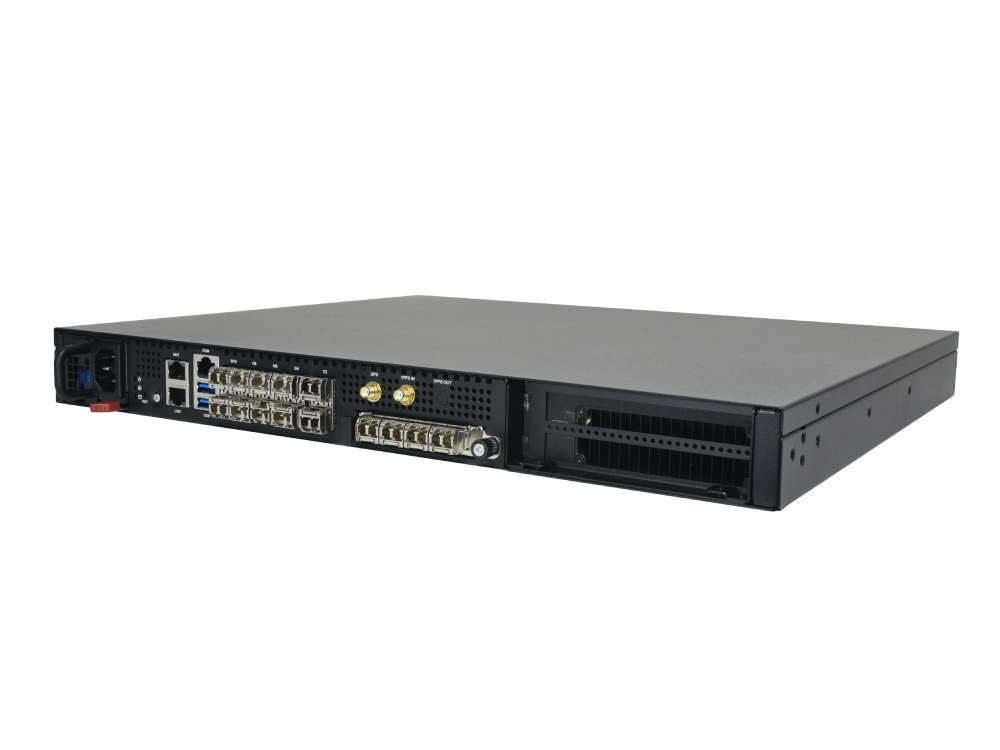

The ECA-4035 is NVIDIA certified for industrial edge and offers 8~22 cores of computing power and comes with 1x OCP 3.0 and 1x PCIe*16; the ECA-4035 is designed for deployment either as edge AI servers for smart city applications, or as multi-access edge computing (MEC) servers for 5G edge cloud and vRAN/O-RAN platform for distributed units.
Specifications
| Platform | |
| Form Factor | 1U 19” Rackmount |
| Processor Options | Intel® Xeon® D2798NT/D2786NTE/D2896TER/D2899NT |
| CPU Socket | Onboard |
| Chipset | SoC |
| Security Acceleration | Intel® QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | DDR4 3200/2933MHz REG, RDIMM |
| Max. Capacity | 256GB |
| Socket | 4x 288-pin DIMM |
| Networking | |
| Ethernet Ports | 2x GbE RJ45 Intel® i210-AT 4x 10G SFP+, 2x 25G SFP28 4x 10G SFP+ Intel® XL710 |
| IEEE 1588 | Yes |
| GPS | Yes |
| LOM | |
| IO Interface | 1x GbE RJ45 Via NCSI |
| OPMA Slot | Yes |
| I/O Interface | |
| Reset Button | 1x Reset Button |
| LED | Power/Status/Storage |
| Power Button | Yes |
| Console | 1x RJ45 |
| USB | 2x USB 3.0 |
| LCD Module | N/A |
| Display | N/A |
| Power Input | AC Power Inlet On PSU Or Single DC Power Inlet (By SKU) |
| Storage | |
| HDD/SSD Support | 2x 2.5” Internal |
| Onboard Slots | 1x M.2 NVMe 2280 M Key 1x M.2 SATA 2280 M Key |
| Expansion | |
| PCIe | 1x FHFL (PCIe*16, Double Width, 350W) 1x OCP 3.0 Slot |
| mini-PCIe | N/A |
| SIM Card Slot | N/A |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Optional |
| Cooling | |
| Processor | Passive CPU Heatsink |

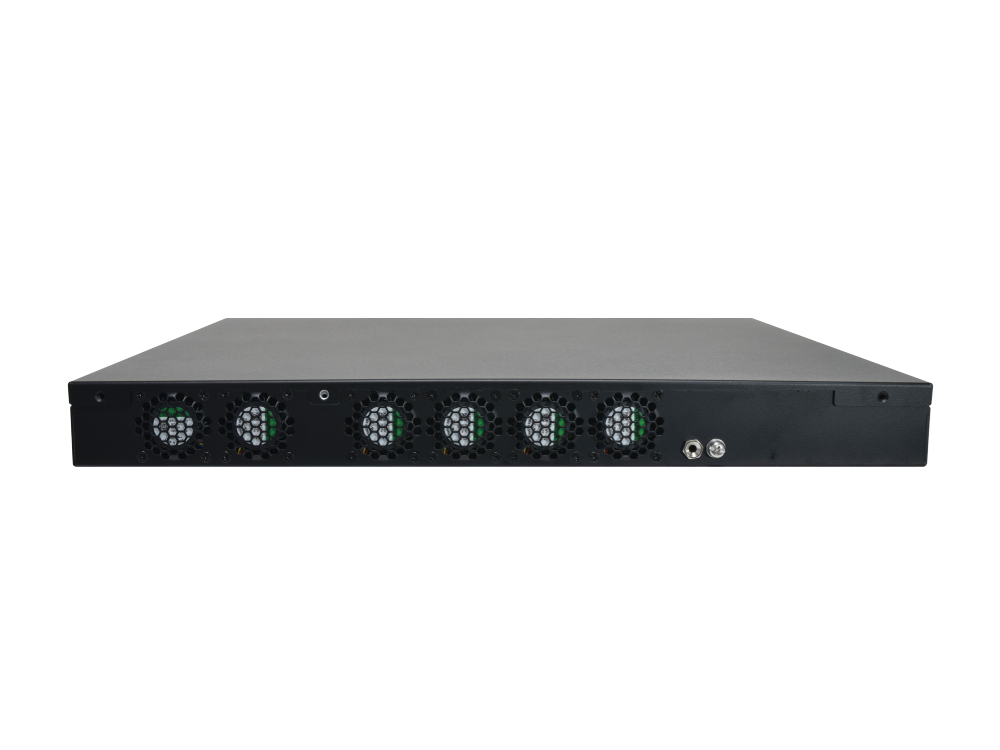

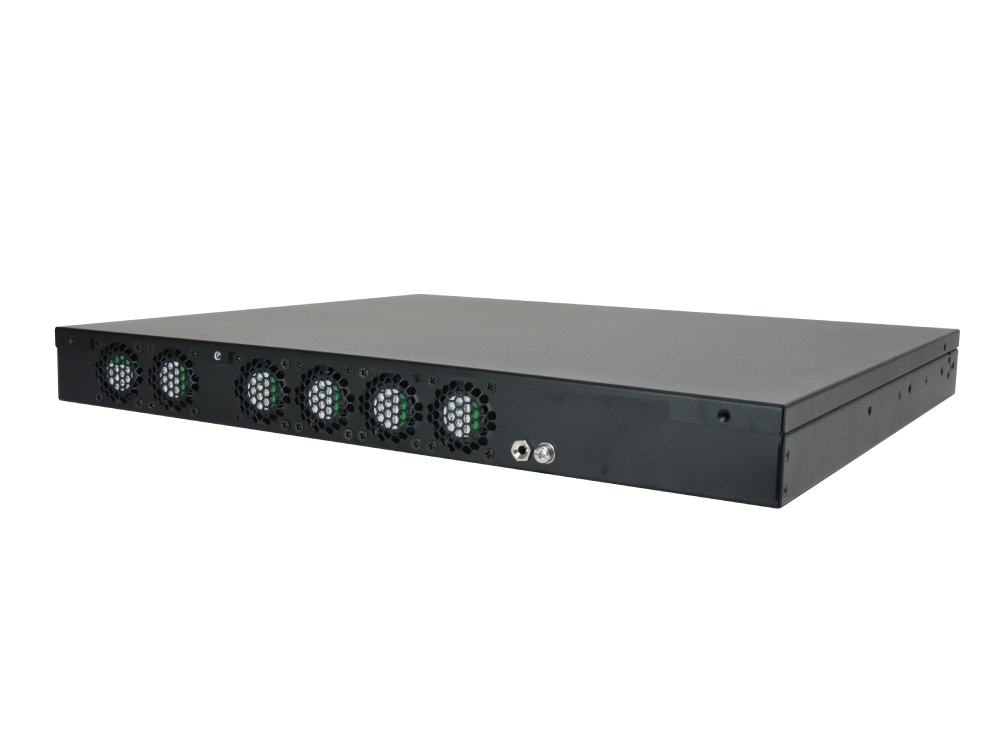

| System | 8x Or 6x Smart Fans (By SKU) |
| Environmental Parameters | |
| Temperature | 0-40ºC Operating -40~70ºC Non-Operating |
| Humidity (RH) | 5~95% Operating 5~95% Non-Operating |
| System Dimensions | |
| (WxDxH) | 438 x 382.2 x 44 mm |
| Weight | 10.70 kg |
| Package Dimensions | |
| (WxDxH) | 585 x 500 x 190 mm |
| Weight | 12.06 kg |
| Power | |
| Type / Watts | 600W Or 800W |
| Input | AC 90~264V @47~63Hz |
| Certification | |
| Approvals and Compliance | CE/FCC Class A, UL, RoHS |
| OS Support | Linux |
Order Information
| ECA-4035A | Intel Xeon 20C D2798NT With QAT, 4x DDR4 3200MHz, 2x GbE RJ45, 8x 10G SFP+, 2x 25G SFP28, 1x PCIe Slot, 1x OCP3.0 NIC, 2x 2280 M.2, 2 x 2.5” SATA Storage, 600W PSU, 0~40 Operating Temp |
| ECA-4035B | Intel Xeon 18C D2786NTE With QAT, 2x DDR4 2933MHz, 2x GbE RJ45, 8x 10G SFP+, 2x 25G SFP28, 1x PCIe Slot, 1x OCP3.0 NIC, 2x 22880 M.2, 600W PSU, -40~65 Operating Temp |
| ECA-4035C | Intel Xeon 20C D2896TER, 2x DDR4 2933MHz, 2x GbE RJ45, 8x 10G SFP+, 2x 25G SFP28, 1 x PCIe Slot, 1x OCP3.0 NIC, 2x 2280 M.2, 600W PSU, -40~65 Operating Temp |
| ECA-4035D | Intel Xeon 22C D2899NT With QAT, 4x DDR4 3200MHz, 2x GbE RJ45, 8x 10G SFP+, 2x 25G SFP28, 1x OCP3.0 NIC, 2x 2280 M.2, 2x 2.5” SATA Storage, 600W PSU, 0~40 Operating Temp |
All product specifications are subject to change without prior notice
