Description

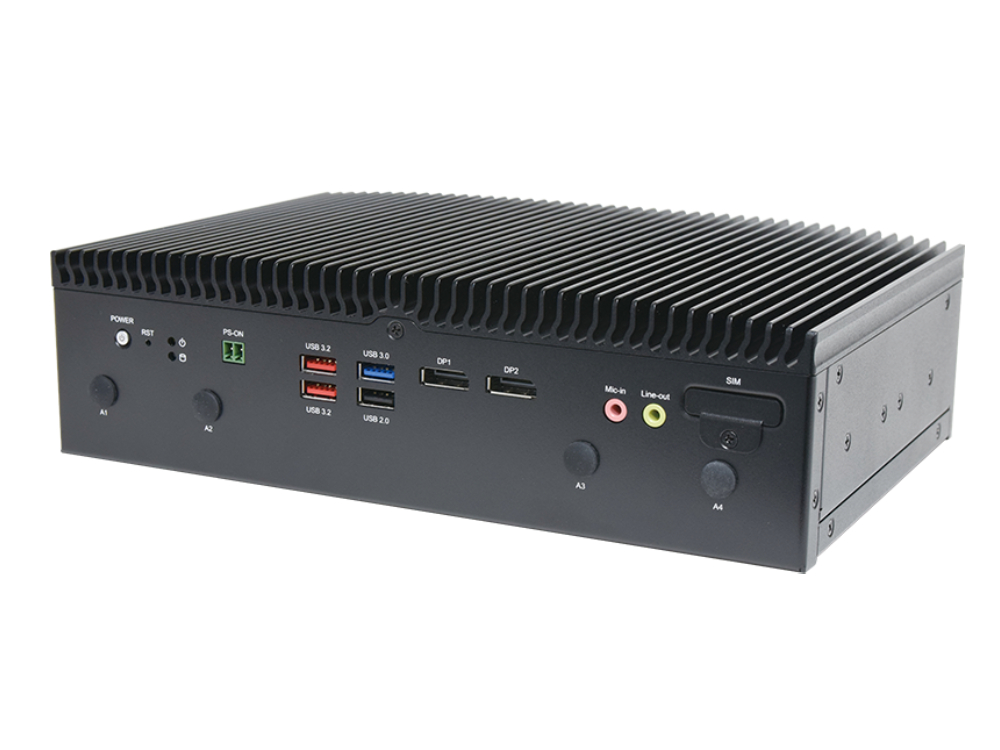

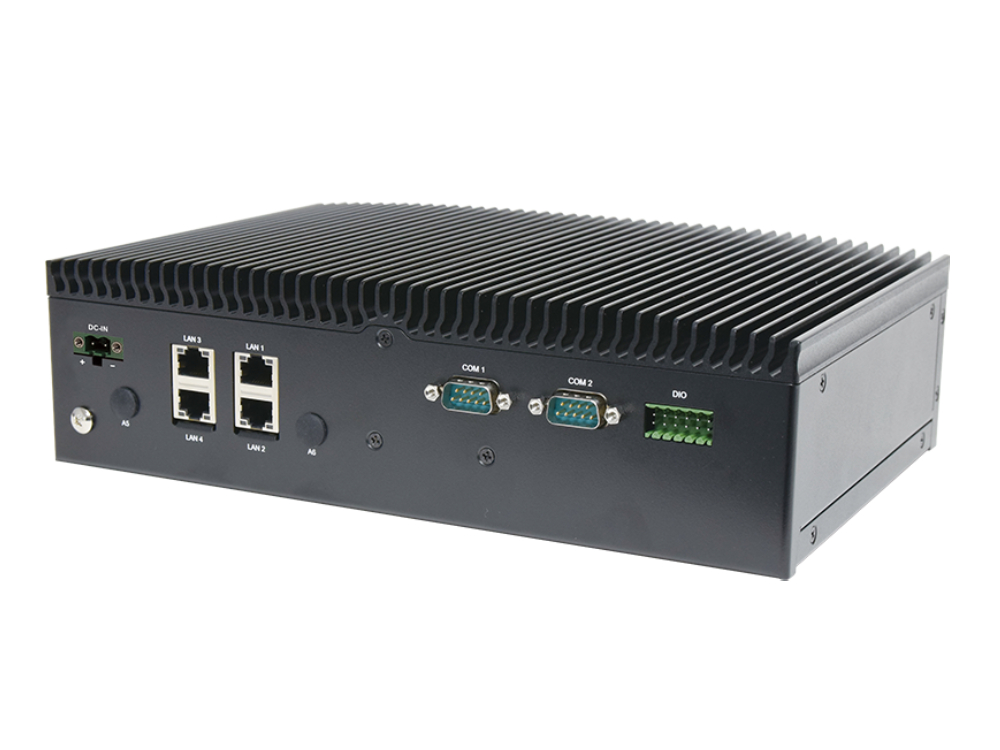

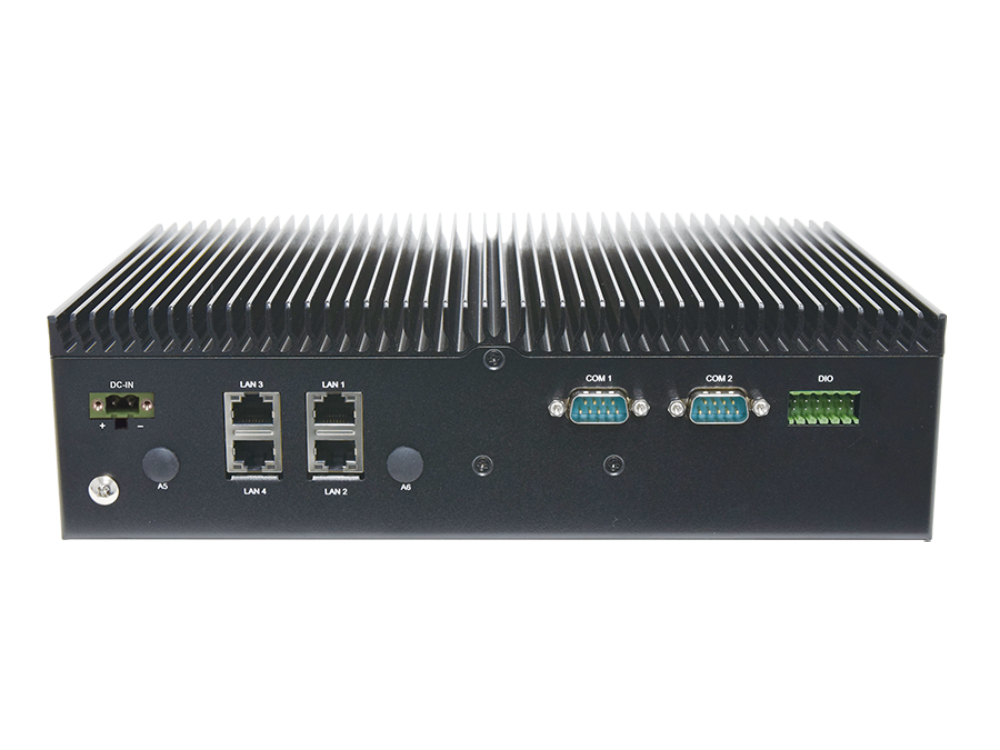

Lanner’s EAI-i500 stands as a state-of-the-art inference box meticulously crafted for retail applications. It harnesses the formidable capabilities of the Intel Meteor Lake H/U CPU and up to 96GB of memory. This forward-looking solution provides a robust and efficient platform meticulously designed to address the distinctive requirements of the retail sector. With its advanced hardware and seamlessly integrated artificial intelligence features, the EAI-i500 is well-positioned to elevate and streamline diverse retail processes, fostering heightened performance, responsiveness, and overall operational efficiency within the dynamic retail landscape.
Specifications
| Processor System | |
| CPU | Intel® Core™ Ultra 7/5 Processor (Meteor Lake-H/U) |
| Frequency | 1.4GHz ~ 1.7GHz (by SKU) |
| Core Number | 14/12/10 |
| BIOS | AMI SPI Flash BIOS |
| Chipset | SoC |
| Memory | |
| Technology | 2x DDR5 5600, non-ECC SODIMM |
| Max. Capacity | 96GB/48GB |
| Graphic | |
| Controller | Intel® UHD Graphics |
| Display | 2x DP1.2 Port |
| Audio | |
| Type | ALC888 |
| Interface | 1x Mic-in, 1x Line-out |
| Ethernet | |
| Controller | Intel® i226LM/i210AT |
| Speed | 10/100/1000/2500 Mbps 10/100/1000 Mbps |
| Interface | 3x 2.5GbE RJ45 1x GbE RJ45 |
| Storage | |
| Type | SATA III |
| Installation | 2x 2.5” SATA Drive Bay for SSD/HDD |
| I/O | |
| Serial Port | 2x DB9 RS232/422/485 (only supported on the COM1) |
| Digital I/O | 4x DI & 4x DO |
| USB | 1x USB 2.0 type A 1x USB 3.0 type A 2x USB 3.2 type A |
| Antenna | 6 x SMA Antenna holes for Wifi/LTE/5G modules |
| Power/Reset Button | 1x Power on/off Button 1x 2-pin terminal block for cabling control power on/off 1x Reset Button |
| LED | Power/Status |
| Expansion Interface | |
| SIM | 1x Nano-SIM 1x eSIM |
| M.2 | 1x M.2 E-key 2230 for WiFi 6/6E 1x M.2 B-key 3042/3052 for LTE/5G 1x M.2 M-key 2280 PCIe Gen3 x4 NVMe |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | TPM2.0 onboard |
| Power | |
| Power Supply Type/Watts | 120W |
| Connector | 2-pins Terminal Block(Phoenix) for +24VDC power input by AC/DC adapter |
| Environment | |
| Operating Temperature | 0°C~40°C |
| Relative Humidity | 5~90% Operating, 5~95% non-operating (non-condensing) |
| Mechanical | |
| System Dimension (W x H x D) | 287 x 76 x 180 mm |
| Package Dimension (W x H x D) | 370 x 351 x 391 mm |
| Weight | 2.4 kg |
| Form Factor | Fanless, Wall mount, VESA(optional) |
| Driver Support | |
| Microsoft Windows | Windows10, Windows 11, Linux Ubuntu |
| Security Boot | BIOS boot loader protected OS protected Support PXE/USB boot and/or HTTP(s) boot with UEFI BIOS |
| Certification | |
| EMC | CE/UKCA, Class A, RoHS, UL/CB 62368-1 |
Order Information
| EAI-I500A | Intel® Core™ Ultra 7 processor (Meteor Lake-H), 2x DDR5 5600, non-ECC SODIMM up to 96GB memory, 4x Ethernet ports, 2x COM ports, 2x 2.5” SATA Drive Bay, 1x M.2 NVMe, 4x USB ports, 2x DP1.2 port, 4x DI & 4x DO, 1x M.2 2230 E-Key for WiFi 6/6E, 1x M.2 3042/3052 B-Key for LTE/5G |
| EAI-I500B | Intel® Core™ Ultra 5 processor (Meteor Lake-H), 2x DDR5 5600, non-ECC SODIMM up to 96GB memory, 4x Ethernet ports, 2x COM ports, 2x 2.5” SATA Drive Bay, 1x M.2 NVMe, 4x USB ports, 2x DP1.2 port, 4x DI & 4x DO, 1x M.22230 E-Key for WiFi 6/6E, 1x M.2 3042/3052B-Key for LTE/5G |
| EAI-I500C | Intel® Core™ Ultra 7 processor (Meteor Lake-U), 2x DDR5 5600, non-ECC SODIMM up to 48GB memory, 4x Ethernet ports, 2x COM ports, 2x 2.5” SATA Drive Bay, 1x M.2 NVMe, 4x USB ports, 2x DP1.2 port, 4x DI & 4x DO, 1x M.22230 E-Key for WiFi 6/6E, 1x M.2 3042/3052 B-Key for LTE/5G |
| EAI-I500D | Intel® Core™ Ultra 5 processor (Meteor Lake-U), 2x DDR5 5600, non-ECC SODIMM up to 48GB memory, 4x Ethernet ports, 2x COM ports, 2x 2.5” SATA Drive Bay, 1x M.2 NVMe, 4x USB ports, 2x DP1.2 port, 4x DI & 4x DO, 1x M.2 2230 E-Key for WiFi 6/6E, 1x M.2 3042/3052 B-Key for LTE/5G |
All product specifications are subject to change without prior notice
