Description
Overview

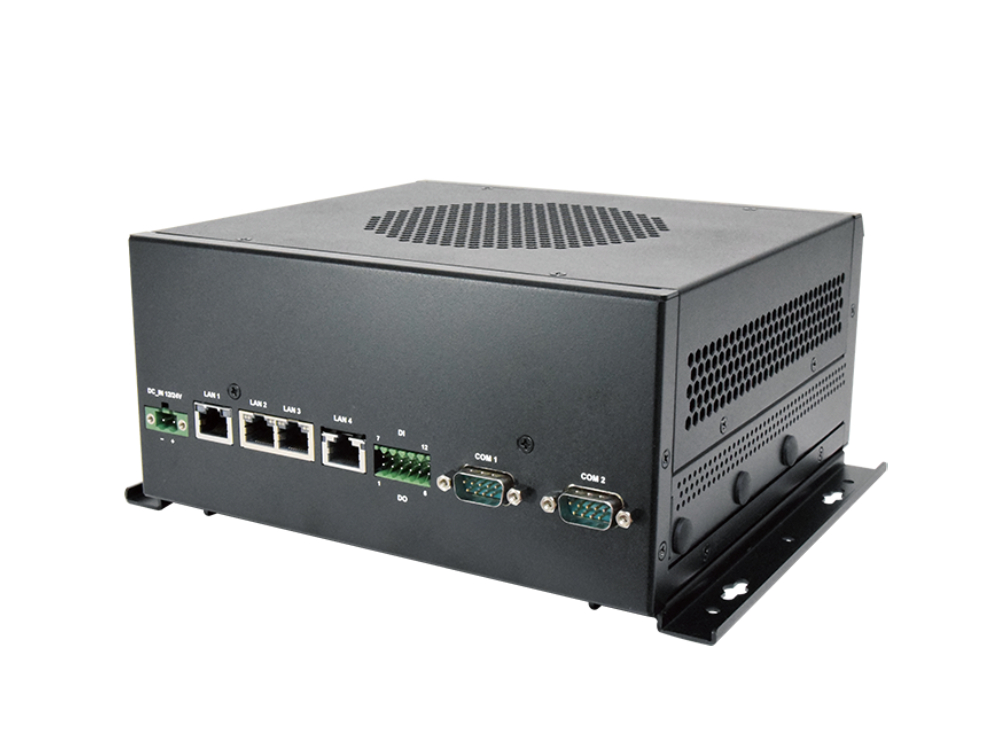

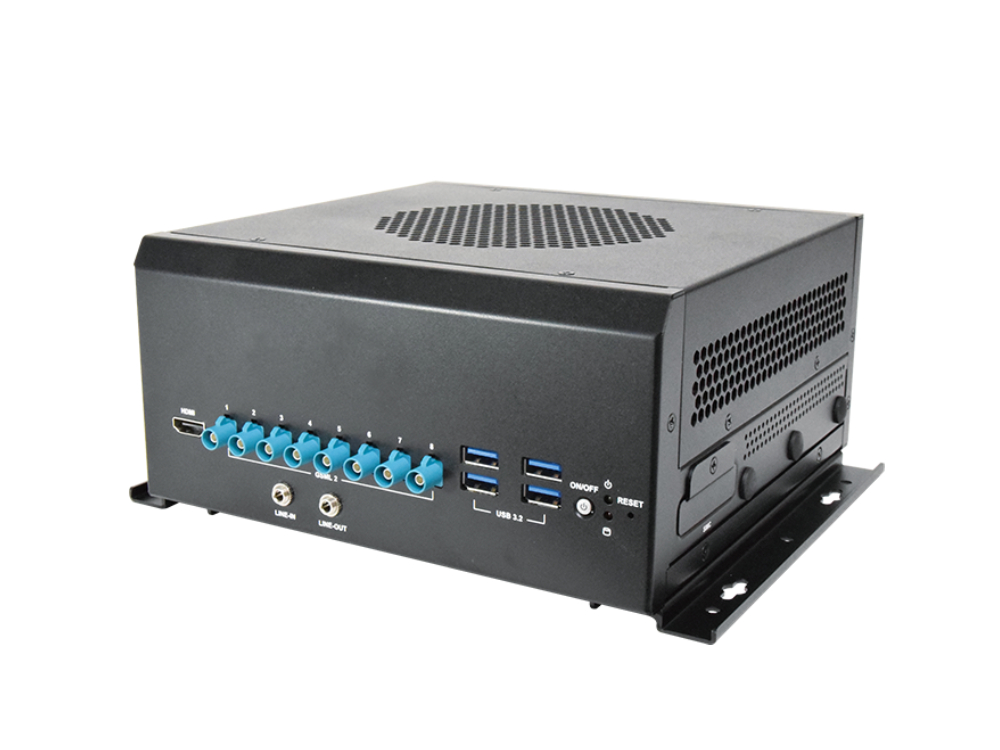

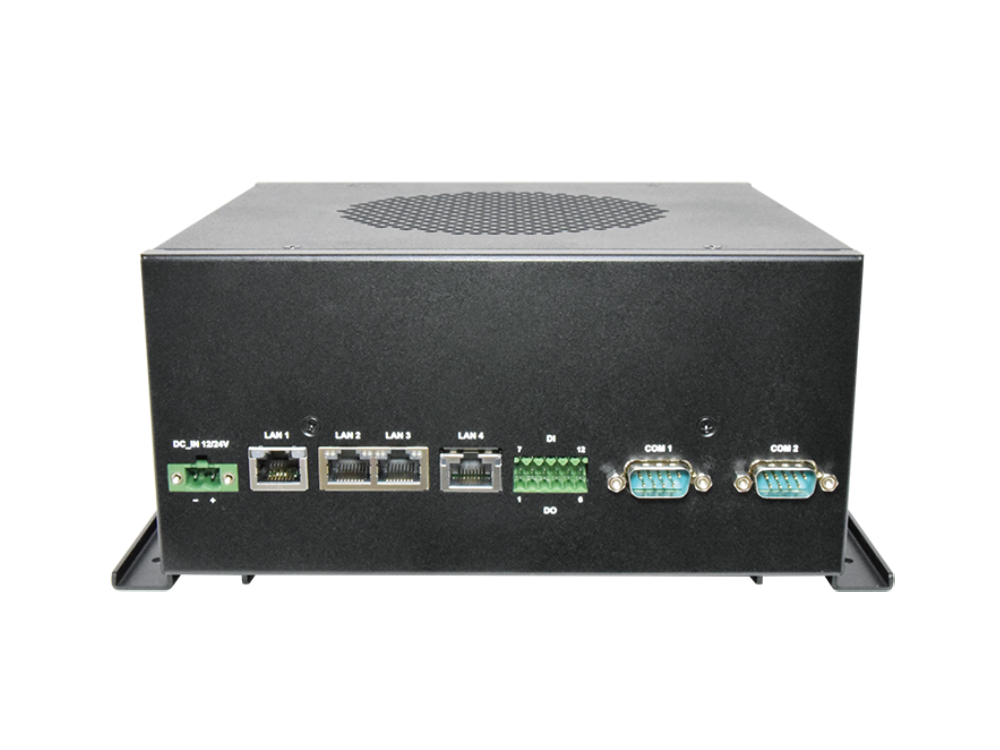

The EAI-I251,powered by the NVIDIA Jetson Orin™ family with up to 2,048 CUDA cores and 64 Tensor Cores, delivers 248 TOPS AI performances. Built for extreme environments (-40°C to 70°C), it enables low-latency AI at the edge for traffic monitoring, factory inspection, and security. With GMSL2 video-in, 10G LAN (PoE+), USB 3.2, COM, DIO, WiFi, and 5G, it ensures seamless integration for mission-critical AI applications.
Specifications
| Platform | |
| CPU | NVIDIA® Jetson AGX Orin |
| SOM TDP | up to 60W |
| System Memory | |
| Technology | LPDDR5 DRAM with ECC |
| Max. Capacity | 64GB |
| Ethernet | |
| Interface | 1x GbE RJ45 1x 10GbE RJ45 2x 2.5GbE RJ45 w/ PoE+ |
| Speed | 10/100/1000 Mbps 10/100/10000 Mbps 10/100/1000/2500 Mbps |
| Bypass | N/A |
| I/O Interface | |
| Reset Button | 1 |
| Serial | 2x DB9 RS232/422/485 (optional 2x CAN) |
| Display | 1x HDMI |
| USB | 4x USB 3.2 Type A |
| DIO | 4x DI, 2x DO |
| Audio | 1x Line-in, 1x Line-out |
| Video-in | 8x GMSL2 De-serializer |
| Antenna | 4x Antenna for LTE/5G Sub6 2x Antenna for WiFi |
| Storage | |
| eMMC | Onboard eMMC 5.1 64GB |
| Onboard Slots | 1x M.2(NVMe) 2280 M-Key(default 128G) |
| Expansion | |
| mini-PCIe/M.2 | 1x M.2 2230 E-Key for WiFi 1x M.2 3042/3052 B-Key for LTE/5G |
| SIM Card Slot | 2x Nano-SIM support Dual SIM |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Onboard TPM 2.0 |
| Cooling | |
| Processor | Passive Heatsink |
| System | 1x 12V Fan 120 x 120 x 25 mm, 2200 RPM (1025 FAN) |
| Environmental Parameters | |
| Temperature | -40ºC~70ºC (35W) -40°C~60°C (60W) |
| Humidity (RH) | 5~90% Operating 5~95% Non-Operating |
| System Dimensions | |
| Dimensions(W x D x H) | 201 x 95 x 196 mm |
| Weight | TBD |
| Mounting | Wall mount |
| Power | |
| Type / Watts | ATX |
| Input | 12V/24 DC input with 2 pin Terminal Block Connector |
| Driver Support | |
| Linux | Linux (NVIDIA Jetpack 6.0.0) |
| Certification | |
| EMC | CE/UKCA, FCC Class A, RoHS |
| Safe | MTBF, UL+CB(62368-1) |
Order Information
| SKU | CPU | Memory | Storage | Ethernet | I/O | Power |
| EAI-I251A | NVIDIA® Jetson AGX Orin |
LPDDR5 DRAM up to 64GB |
Onboard eMMC 5.1 64GB 1x M.2(NVMe) 2280 M-Key |
1x GbE RJ45 1x 10GbE RJ45 2x 2.5GbE RJ45 w/ PoE+ |
2x COM (optional CAN) 4x USB 3.2 1x HDMI 8x GMSL2 |
DC 12V/24V |
All product specifications are subject to change without prior notice
